Dotnet Core基于Consul服务注册与发现

faith team
  2023-09-18 11:21:05 2023-09-18 11:21 Created   2025-11-29 09:01:08 2025-11-29 09:01 Updated

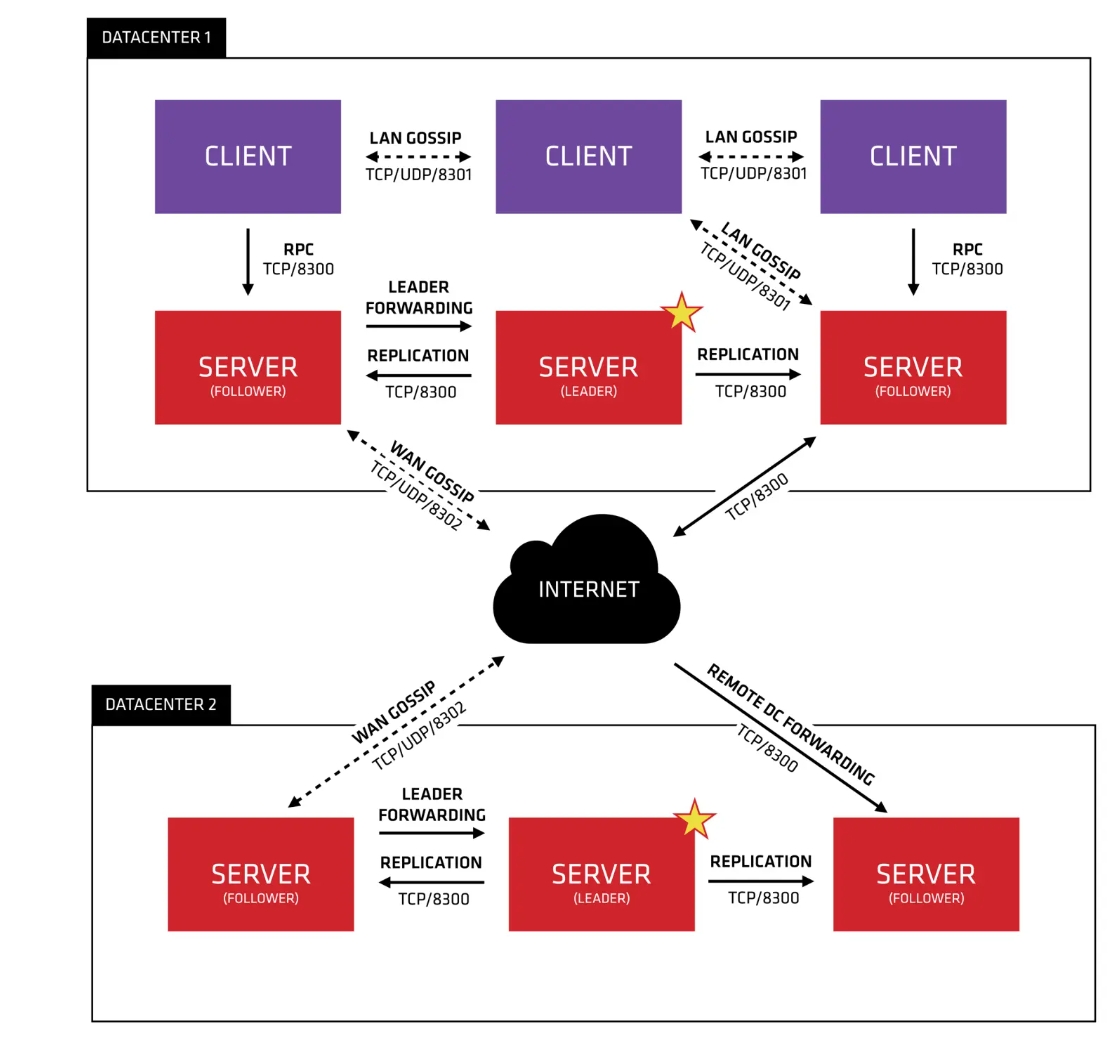

Consul架构

Test
Consul 集群支持多数据中心，在上图中有两个 DataCenter，他们通过 Internet 互联，为了提高通信效率，只有 Server 节点才加入跨数据中心的通信。在单个数据中心中，Consul 分为 Client 和 Server 两种节点（所有的节点也被称为 Agent），Server 节点保存数据，Client 负责健康检查及转发数据请求到 Server，本身不保存注册信息；Server 节点有一个 Leader 和多个 Follower，Leader 节点会将数据同步到 Follower，Server 节点的数量推荐是3个或者5个，在 Leader 挂掉的时候会启动选举机制产生一个新 Leader。

Consul集群的搭建

使用docker搭建3个Service节点和1个Client节点，Api服务通过Client节点进行服务注册和发现

1.下载镜像

1
docker pull consul

2.编写docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
version: '3'
services:
  cs1:
    image: consul:latest
    command: agent -server -client=0.0.0.0 -bootstrap-expect=3 -node=cs1 -data-dir=/data
    volumes:
      - /root/docker/consul/data/cs1:/data
  cs2:
    image: consul:latest
    command: agent -server -client=0.0.0.0 -retry-join=cs1 -node=cs2 -data-dir=/data
    volumes:
      - /root/docker/consul/data/cs2:/data
    depends_on:
      - cs1
  cs3:
    image: consul:latest
    command: agent -server -client=0.0.0.0 -retry-join=cs1 -node=cs3 -data-dir=/data
    volumes:
      - /root/docker/consul/data/cs3:/data
    depends_on:
      - cs1
  cc1:
    image: consul:latest
    command: agent -client=0.0.0.0 -retry-join=cs1 -ui -node=cc1 -data-dir=/data
    ports:
      - 8500:8500
    volumes:
      - /root/docker/consul/data/cc1:/data
    depends_on:
      - cs2
      - cs3

3.运行docker-compose

1
docker-compose up -d

4.遇到报错

发现运行容器后容器状态处于exited状态，查看容器日志

1
2
docker logs [容器id]
==> failed to setup node ID: failed to write NodeID to disk: open /data/node-id: permission denied

表示无法创建data文件夹？我最开始按照volumes对应创建了/root/docker/consul/data/cc1，bing了一下发现在cc1下面还有一个data文件夹，创建，看他报错还有permission denied，设置文件夹的权限

1
chmod -R 777 [url]

遇到报错了不要着急还是要先看日志

5.主要参数说明：

参数名 解释
-server 设置为 Server 类型节点，不加则为 Client 类型节点
-client 注册或者查询等一系列客户端对它操作的IP，默认是127.0.0.1
-bootstrap-expect 集群期望的 Server 节点数，只有达到这个值才会选举 Leader
-node 指定节点名称
-data-dir 数据存放位置
-retry-join 指定要加入的节点地址（组建集群）
-ui 启用 UI 界面

6.集群状态

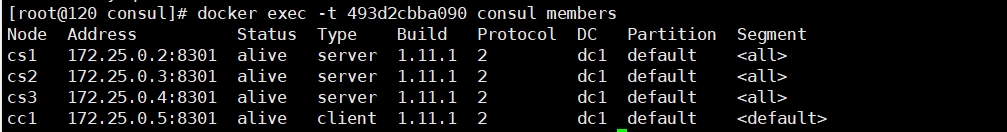

查看节点状态

1
docker exec -t e002ca62ac24 consul members

Test
当前3个Service，1个Client

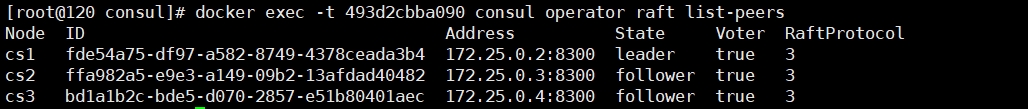

查看Server节点类型
Test
当前leader为cs1 把cs1关了会自动选举leader

Dotnet Core接入Consul 进行服务注册

1.配置文件内容

1
2
3
4
5
6
7
8
9
10
11
12
"ConsulRegisterOption": {
  //你要去连接的consul服务地址
  "Address": "http://localhost:8500",
  //consul需要往服务发送心跳检测所以需要自己写一个healcheck接口并告知cousl
  "ServiceHealthCheck": "http://localhost:7777/healthcheck",
  //服务名称
  "ServiceName": "ServiceA",
  //服务ip
  "ServiceIP": "localhost",
  //服务端口
  "ServicePort": "7777"
}

2.编写配置类

1
2
3
4
5
6
7
8
9
public class ConsulRegisterOption
{
    public string Address { get; set; }
    public string ServiceHealthCheck { get; set; }
    //consul 的心跳检测和nacos有区别 nacos是主动给服务发心跳 而consul是服务主动给consul发心跳所以需要告诉consul自己的ip和端口
    public string ServiceName { get; set; }
    public string ServiceIP { get; set; }
    public int ServicePort { get; set; }
}

3.编写IApplicationBuilder扩展类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public static class ConsulBuilderExtensions
    {
        public static IApplicationBuilder RegisterConsul(this IApplicationBuilder app, IHostApplicationLifetime lifetime, ConsulRegisterOption consulOption)
        {
            var consulClient = new ConsulClient(x =>
            {
                x.Address = new Uri(consulOption.Address);
            });

            var registration = new AgentServiceRegistration()
            {
                ID = Guid.NewGuid().ToString(),
                Name = consulOption.ServiceName,// 服务名
                Address = consulOption.ServiceIP, // 服务绑定IP
                Port = consulOption.ServicePort, // 服务绑定端口
                Check = new AgentServiceCheck()
                {
                    DeregisterCriticalServiceAfter = TimeSpan.FromSeconds(5),//服务启动多久后注册
                    Interval = TimeSpan.FromSeconds(10),//健康检查时间间隔
                    HTTP = consulOption.ServiceHealthCheck,//健康检查地址
                    Timeout = TimeSpan.FromSeconds(5)
                }
            };

            // 服务注册
            consulClient.Agent.ServiceRegister(registration).Wait();

            // 应用程序终止时，服务取消注册
            lifetime.ApplicationStopping.Register(() =>
            {
                consulClient.Agent.ServiceDeregister(registration.ID).Wait();
            });
            return app;
        }
    }

4.program部分代码

1
2
3
4
builder.Services.Configure<ConsulRegisterOption>(builder.Configuration.GetSection("ConsulRegisterOption"));
//读取配置类注册
var consulRegisterOption = app.Services.GetRequiredService<IOptionsMonitor<ConsulRegisterOption>>().CurrentValue;
app.RegisterConsul(app.Lifetime, consulRegisterOption);

Dotnet Core接入Consul 进行服务发现

编写AbstractConsulDispatcher 服务发现抽象类

主要逻辑就是从cousl客户端去寻找服务，根据传入的服务名，负载均衡随机调用哪个服务。前提是这个服务是健康的服务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
using Consul;
using Microsoft.Extensions.Options;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Text;

namespace ConsulRegistHelper
{
    public abstract class AbstractConsulDispatcher
    {
        protected ConsulRegisterOption _consulRegisterOptions;
        protected KeyValuePair<string, AgentService>[] _CurrentAgentServiceDictionary;
        public AbstractConsulDispatcher(IOptionsMonitor<ConsulRegisterOption> consulClientOption) {
            _consulRegisterOptions = consulClientOption.CurrentValue;
        }
        /// <summary>
        /// 负载均衡获取地址
        /// </summary>
        /// <param name="mappingUrl">映射后的地址例如http://SeriveB/test</param>
        /// <returns></returns>
        public string GetAddress(string mappingUrl) {
           Uri uri = new Uri(mappingUrl);
           var serviceName = uri.Host;
           string addressPort = this.chooseAddress(serviceName);
           string scheme = uri.Scheme;
           string path = uri.PathAndQuery;
           return $"{uri.Scheme}://{addressPort}{uri.PathAndQuery}";
        }
        protected virtual string chooseAddress(string serviceName) {
            ConsulClient client = new ConsulClient(c =>
            {
                c.Address = new Uri($"http://localhost:8500");
            });
            AgentService agentService = null;

            //获取consul 所有服务清单
           var response = client.Agent.Services().Result.Response;
           var dictionary = response.Where(s => s.Value.Service.Equals(serviceName, StringComparison.OrdinalIgnoreCase)).ToArray();
            var entrys = client.Health.Service(serviceName).Result.Response;
            List<KeyValuePair<string, AgentService>> serviceList = new List<KeyValuePair<string, AgentService>>();
            for (int i = 0; i < entrys.Length; i++)
            {
                serviceList.Add(new KeyValuePair<string, AgentService>(i.ToString(), entrys[i].Service));
            }
            this._CurrentAgentServiceDictionary = serviceList.ToArray();
            int index = this.GetIndex();
            agentService = this._CurrentAgentServiceDictionary[index].Value;

            return $"{agentService.Address}:{agentService.Port}";
        }
        protected abstract int GetIndex();
    }
}

负载均很策略 扩展类 来设置服务发现的负载均很选用那种策略

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
using Microsoft.Extensions.DependencyInjection;
using System;
using System.Collections.Generic;
using System.Text;

namespace ConsulRegistHelper.ConsulExend
{
    public static class ConsulExtend
    {
        /// <summary>
        /// 注册Consul调度策略
        /// </summary>
        /// <param name="services"></param>
        /// <param name="consulDispatcherType"></param>
        public static void AddConsulDispatcher(this IServiceCollection services, ConsulDispatcherType consulDispatcherType)
        {
            switch (consulDispatcherType)
            {
                case ConsulDispatcherType.Average:
                    services.AddTransient<AbstractConsulDispatcher, AverageDispatcher>();
                    break;
                case ConsulDispatcherType.Polling:
                    services.AddTransient<AbstractConsulDispatcher, PollingDispatcher>();
                    break;
                case ConsulDispatcherType.Weight:
                    services.AddTransient<AbstractConsulDispatcher, WeightDispatcher>();
                    break;
                default:
                    break;
            }
        }

        public enum ConsulDispatcherType
        {
            Average = 0,
            Polling = 1,
            Weight = 2
        }
    }
}

1.权重调度

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
using Consul;
using Microsoft.Extensions.Options;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace ConsulRegistHelper.ConsulExend
{
    /// <summary>
    /// 权重调度
    /// </summary>
    public class WeightDispatcher : AbstractConsulDispatcher
    {
        #region Identity
        private static int _iTotalCount = 0;
        private static int iTotalCount
        {
            get
            {
                return _iTotalCount;
            }
            set
            {
                _iTotalCount = value >= Int32.MaxValue ? 0 : value;
            }
        }
        public WeightDispatcher(IOptionsMonitor<ConsulRegisterOption> consulClientOption) : base(consulClientOption)
        {

        }
        #endregion

        protected override string chooseAddress(string serviceName)
        {
            ConsulClient client = new ConsulClient(c =>
            {
                c.Address = new Uri($"{_consulRegisterOptions.Address}");
            });
            AgentService agentService = null;
            var response = client.Agent.Services().Result.Response;

            this._CurrentAgentServiceDictionary = response.Where(s => s.Value.Service.Equals(serviceName, StringComparison.OrdinalIgnoreCase)).ToArray();


            var serviceDictionaryNew = new List<AgentService>();
            foreach (var service in base._CurrentAgentServiceDictionary)
            {
                serviceDictionaryNew.AddRange(Enumerable.Repeat(service.Value, int.TryParse(service.Value.Tags?[0], out int iWeight) ? 1 : iWeight));
            }
            int index = new Random(DateTime.Now.Millisecond).Next(0, int.MaxValue) % serviceDictionaryNew.Count;
            agentService = serviceDictionaryNew[index];

            return $"{agentService.Address}:{agentService.Port}";
        }
        /// <summary>
        /// 不需要了
        /// </summary>
        /// <returns></returns>
        protected override int GetIndex()
        {
            throw new NotImplementedException();
        }
    }
}

2.轮询

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
using Microsoft.Extensions.Options;
using System;
using System.Collections.Generic;
using System.Text;

namespace ConsulRegistHelper.ConsulExend
{
    public class PollingDispatcher : AbstractConsulDispatcher
    {
        #region Identity
        private static int _iTotalCount = 0;
        private static int iTotalCount
        {
            get
            {
                return _iTotalCount;
            }
            set
            {
                _iTotalCount = value >= Int32.MaxValue ? 0 : value;
            }
        }

        public PollingDispatcher(IOptionsMonitor<ConsulRegisterOption> consulClientOption) : base(consulClientOption)
        {
        }
        #endregion

        /// <summary>
        /// 轮询
        /// </summary>
        /// <param name="serviceCount"></param>
        /// <returns></returns>
        protected override int GetIndex()
        {
            return iTotalCount++ % base._CurrentAgentServiceDictionary.Length;
        }
    }
}

3.平均调度

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
using Microsoft.Extensions.Options;
using System;
using System.Collections.Generic;
using System.Text;

namespace ConsulRegistHelper.ConsulExend
{
    /// <summary>
    /// 平均调度
    /// </summary>
    public class AverageDispatcher : AbstractConsulDispatcher
    {
        #region Identity
        private static int _iTotalCount = 0;
        private static int iTotalCount
        {
            get
            {
                return _iTotalCount;
            }
            set
            {
                _iTotalCount = value >= Int32.MaxValue ? 0 : value;
            }
        }

        public AverageDispatcher(IOptionsMonitor<ConsulRegisterOption> consulClientOption) : base(consulClientOption)
        {
        }
        #endregion
        /// <summary>
        /// 平均
        /// </summary>
        /// <returns></returns>
        protected override int GetIndex()
        {
            return new Random(iTotalCount++).Next(0, base._CurrentAgentServiceDictionary.Length);
        }
    }
}

注入方式

1
builder.Services.AddConsulDispatcher(ConsulExtend.ConsulDispatcherType.Polling);

使用Refit来进行服务之间的调用

首先引入Refit nuget包
调用代码

1
2
3
4
5
6
7
8
9
10
11
12
[HttpGet("/getService")]
public async Task<List<Person>> getServcieB() {
    //基于consul获取url地址
    string url = "http://ServerB/getPerson";
    //获取真实的地址
    string realUrl = abstractConsulDispatcher.GetAddress(url);
    //调用接口
    var gitHubApi = RestService.For<IGitHubApi>(realUrl);
    return await gitHubApi.getPerson();
    // var res =await ExtensionsService.GetAsync(realUrl);
    //return JsonConvert.DeserializeObject<List<Person>>(res);
}

编写IGitHubApi接口

1
2
3
4
5
6
7
8
9
using Refit;

namespace ServerB;

public interface IGitHubApi
{
    [Get("/getperson")]
    public Task<List<Person>> getPerson();
}
  • Title: Dotnet Core基于Consul服务注册与发现
  • Author: faith team
  • Created at: 2023-09-18 11:21:05
  • Updated at: 2025-11-29 09:01:08
  • Link: https://redefine.ohevan.com/2023/09/18/20230918Dotnet服务注册与发现/
  • License: This work is licensed under CC BY-NC-SA 4.0.
 Comments
On this page
Dotnet Core基于Consul服务注册与发现
  1. Consul架构
  2. Consul集群的搭建
    1. 1.下载镜像
    2. 2.编写docker-compose.yml
    3. 3.运行docker-compose
    4. 4.遇到报错
    5. 5.主要参数说明：
    6. 6.集群状态
  3. Dotnet Core接入Consul 进行服务注册
  4. Dotnet Core接入Consul 进行服务发现
    1. 编写AbstractConsulDispatcher 服务发现抽象类
    2. 负载均很策略 扩展类 来设置服务发现的负载均很选用那种策略
    3. 使用Refit来进行服务之间的调用
